Though I don't think that 3D printed cases are really worth it as you really need soft rubber like sides and a clear hard plastic back for your case, I do think that 3D printing is great when it comes to making other things for your phone.

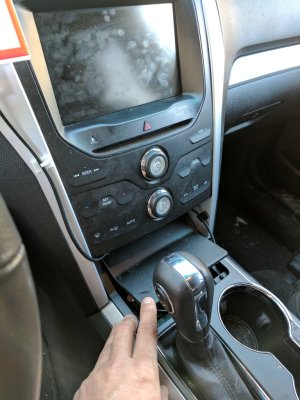

Getting a Pixel XL when they were released, I knew I wanted a way to mount the phone in my Ford Explorer.
This idea started when I had a BB Priv, and wanted the same type of solution to not only mount the phone, but also to have it charge when mounted.
I got a working copy of that, and then once I changed to the Pixel XL wanted the same.
Because the phone is as slippery as a bar of soap in the shower, the case I picked up was a reasonable priced thin Puregear slim shell case. Gave me grip but didn't make the phone look ridiculous.
Then I measured and printed out a few prototypes before coming up with this solution.

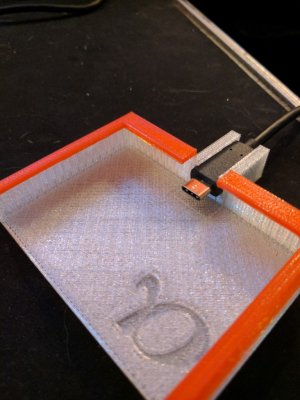

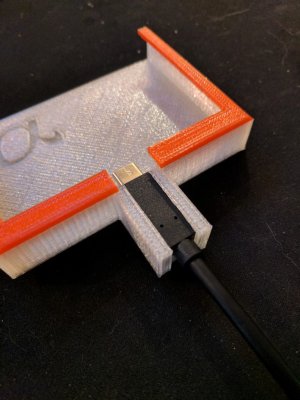

Simple, some 3M double sided tape, and some tweaking to get the cable mount just right.

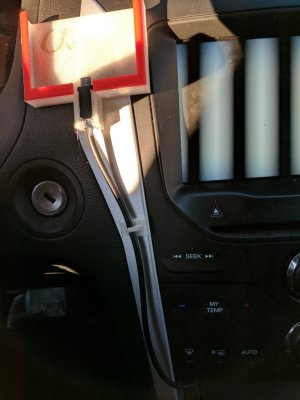

Then I designed and printed some small wire clamps to keep the wiring clean and neat.

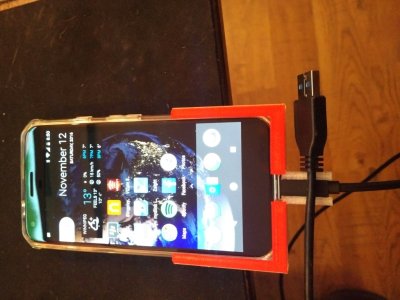

End result is a perfect fit.
Due to hands free laws, this now gets my phone out of my hands and in front of me mounted so I don't get a nasty fine when touching my phone. Lets me use my "ok google" commands perfectly, and has google maps in a perfect sight line for when I am getting directions.

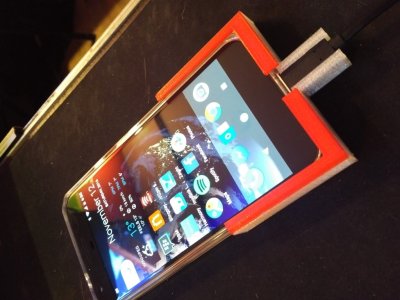

Added a bit of color to the case by pausing the 3D print and changing filament on the fly.
