Charging Power mah

[majorpayne]

I know that this has been answereed on here and I'm most likely using the wrong search parameters but I would like to know what my Charger is charging my Tablet at. what is a good simple program for this and if there isn't a simple program can anyone kinda guide me through the hard one lol



[bigtroutz]

Nexus can charge at 2 rates - 2.1 amps @ 5 volts provided by the charger that comes with the N7 or equal OR the standard USB2 .5 amps @ 5 volts.
USB charging takes MUCH longer.

No program is required - clicking on the battery in settings will tell you how long it takes for charging and your charging & discharging history.



[majorpayne]

The reason I have asked is becuase I picked up a 2 usb 2.1 charging unit which states it can supply 2.1 if only 1 port is used but it was not charging my N7. I wanted to find out without using a multimeter to see if the N7 can show the incoming amperage



[moorken]

i have used an 1,5 Amp adapter once, and it looks like its not enough to power the device, but it stretches the battery time before you need to connect it again to the correct adapter (its my backup scenario at the office )



[mathelm]

This won't give you a amperage, but I think it's what you need. Battery Widget Reborn shows you the time per 1% charge, along with a lot of other info.



[bigtroutz]

+1 on Battery Widget Reborn - I like it too

you could always use a multimeter with test leads to the charging cable wires -- zzzzzzapp !!



[jpash549]

Another one is Gauge Battery Widget which gives much the same info and has a Pro version at $0.99. As I recall the N7 has a nominal 4300 milliamp-hr battery. With the given time for a 1% increase you can calculate the current into the battery. The stock charger is rated at 2 amps but the charging current allowed is controlled by the. N7 battery control software and is reduced as the. percent charge increases over about 50%. Operating the tablet when charging also may increase the time to charge.

Sent from my Nexus 7 using Android Central Forums



[majorpayne]

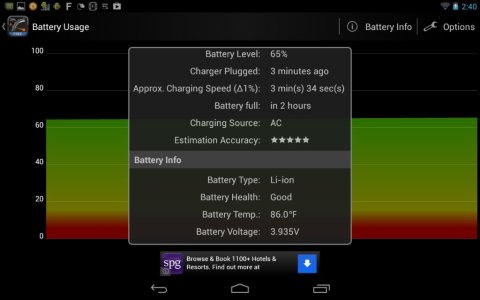

Hmmm... So using Gauge Battery Widget my battery is at 25% with Approx Charging Speed of 6mins 58 sec. With a battery temp of 91.4F Battery voltage 3.784 Currently I'm using a Touchpad (HP) charger using a belkin 6' cable. I have Wireless off. I'm going to restart the Nexus to make sure nothing is running in the background to eat power.


Edit: With a Reboot and not turning on wireless the New info is

Approx. charging speed 3 min 9 sec Battery full 3 hours Battery Temp 91.4F Battery voltage 3.797V



[mathelm]

On the OEM charger n cord, mine is anywhere from 2 min 40 sec to 3 min'ish per 1% with wifi on.....

via Battery Widget Reborn ...



[bigtroutz]

I get 2 hours and 38 minutes with Daydream set to Currents (WiFI & Screen on) using generic 6 ft cable and factory charge adapter.
