How to flash an xml file without rsd lite

[newraze5115]

I have a droid turbo and it is stuck in ap fastboot but rsd lite won't detect it so how would I flash an xml file to it to restore the firmware?



[sd_shadow]

I have a droid turbo and it is stuck in ap fastboot but rsd lite won't detect it so how would I flash an xml file to it to restore the firmware?

There are several Flashing options, but you need to install official Motorola Drivers for any of them to work.
Download and Install Drivers (Motorola_End_User_Driver_Installation...)
Motorola Drivers for Windows https://docs.google.com/document/d/141oAPUoUQcwMWnGtY1B3MybSVBDkFWbnGWddymN4nvs/edit?usp=sharing

It’s a good idea to reboot pc after installing drivers

Sent from my XT907 using Tapatalk



[newraze5115]

I have tried all of them and they either don't flash the stuff I need or they just flat out don't pick up my device. Fastboot or mfastboot won't flash anything and rsd lite won't even detect my phone



[sd_shadow]

I have tried all of them and they either don't flash the stuff I need or they just flat out don't pick up my device. Fastboot or mfastboot won't flash anything and rsd lite won't even detect my phone

All of what?

Sent from my XT907 using Tapatalk



[sd_shadow]

Post filenames

Sent from my XT907 using Tapatalk



[sd_shadow]

Did you check device manager?
Windows version?

Sent from my XT907 using Tapatalk



[sd_shadow]

RSD Lite version?

Sent from my XT907 using Tapatalk



[newraze5115]

mfastboot-v2
RSDLite6.2.4
RSDLite5.6
Restore stock recovery
RSDLite 6.1.6
RSDLite5.6.4
minimal_adb_fastboot_v1.1.3_setup
TURBO-UNBRICK
Drivers:
MotorolaDeviceManager_2.5.4
MotoHelper_2.1.32_Driver_5.4.0
Motorola Flash Tools_ RSD Lite, Drivers...
UniversalAdbDriverSetup

P.S. None of these worked at all and my phone is still stuck in ap fastboot.

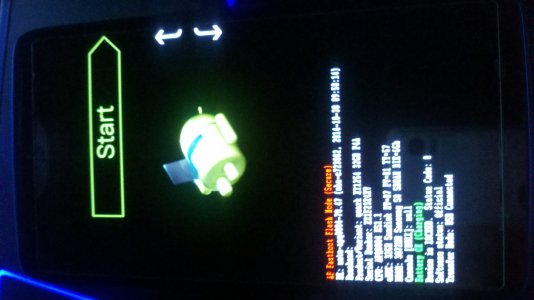

This is my phone ap fastboot screen.



[sd_shadow]

Does AP Fastboot's 'connect usb data cable' change when connected to pc?

Sent from my XT907 using Tapatalk



[sd_shadow]

View attachment 184156
Battery is good, for now
usb status should change when connected to PC,

Sent from my XT907 using Tapatalk



[newraze5115]

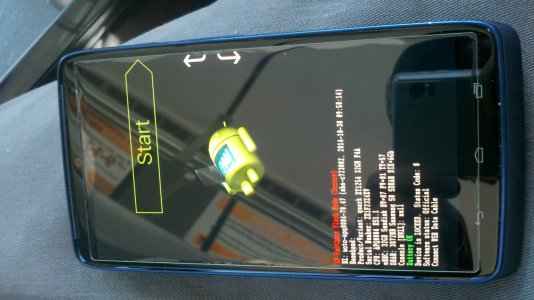

this is my phone's ap fastboot screen when it is connected to my pc



[sd_shadow]

View attachment 184176

this is my phone's ap fastboot screen when it is connected to my pc

Good, how is it listed in Device Manager?

Sent from my XT907 using Tapatalk



[newraze5115]

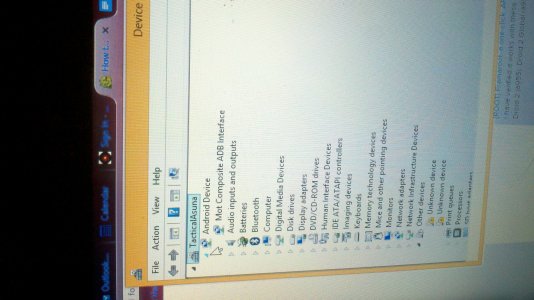

This is how it is listed in my device manager



[sd_shadow]

View attachment 184183

This is how it is listed in my device manager

I don't think that it should say composite
Try uninstalling the device and driver
Reinstal drivers reboot

Sent from my XT907 using Tapatalk



[newraze5115]

I don't think that it should say composite
Try uninstalling the device and driver
Reinstal drivers reboot

Sent from my XT907 using Tapatalk

What should it say then?



[sd_shadow]

What should it say then?

Mot adb interface

Sent from my XT907 using Tapatalk



[sd_shadow]

Try these drivers https://www.androidfilehost.com/?fid=95864024717070449

Sent from my XT907 using Tapatalk



[newraze5115]

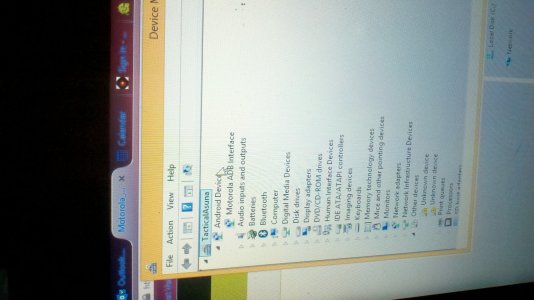

This is how it is listed now with those drivers.



[sd_shadow]

View attachment 184187

This is how it is listed now with those drivers.

Good, which file are you trying to flash?

Sent from my XT907 using Tapatalk



[newraze5115]

This 1: VRZ_XT1254_KDF21.128-15_15_CFC.xml
