Nexus 4 - Simple fix after volume buttons stopped responding.

someguy01234

Well-known member
Nov 9, 2011
1,813
2
0
Visit site
I dropped my phone from only about 2.5ft, it must have fell on its side and the volume buttons took impact because they stopped responding afterward. Didn't felt like having to send it in for RMA, so I opened the phone. You simply need to use a T5 torque screw driver on the two bottom screws, then use something like a guitar pick to pop out the back cover.

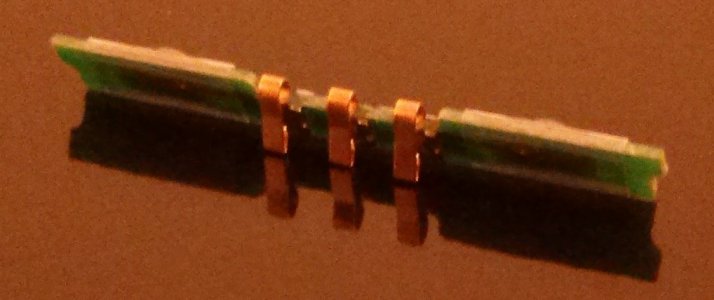

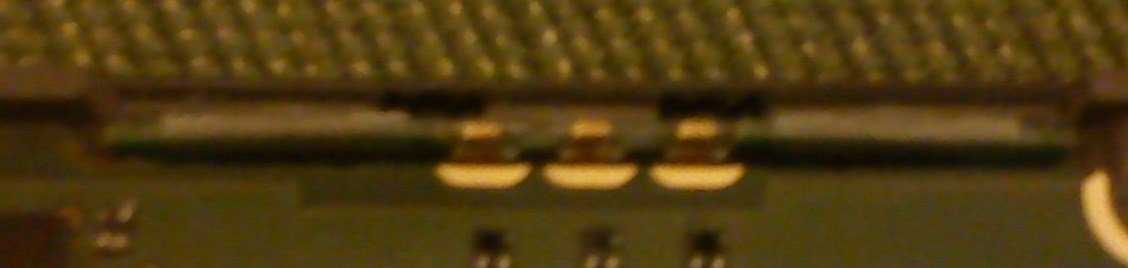

The volume buttons are part of a separate thin board that also have 3 "gold clips" which will need to touch the contact points on main board in order to change the volume. When the volume buttons took the fall impact, the gold clips are squished so they are thinner and can no longer made the contact.


To fix it, I simply had to use a thin Phillips head or anything to stretch/widen these gold clips (carefully without breaking it). To get access to the gold clips you need to remove this separate thin board from the phone, in order to do that you just have to unscrew 9 screws to remove the inner black plastic cover that protects the board components, which hold this volume board in place.

LG design for the N4 volume buttons seems incredibly flimsy with these contacts, but at least its replaceable.


Mr goats

New member
Sep 12, 2015
1
0
0
Visit site
People are grabby and this dude decided to take my phone which was sitting next to my water bottle while I was skateboarding and while he decided to try to snoop, he dropped it on the volume button. I was using it to broadcast music via bluetooth to my car stereo, and the volume maxed out immediately and I almost ripped the guys face off. So then I find I can't use the all important volume DOWN button for bootloader. So your solution fixed my phone. Thank you so much for sharing this fix.
