Note 3 won't turn on. . .

Kyndal Brown

New member
Dec 13, 2014
2
0
0
Visit site
About a month ago my husband had his note 3 in his front pants pocket while he was running. He tripped and fell and landed on the pocket his phone was in. The screen is not cracked, or even scratched, but the phone did suffer some jarring in the fall. From that point on, even when plugged in on the charger, the phone will not turn on. There's no LED light power indication, no vibration, no screen image, it's just dead.
After doing some research, I disassembled the phone. When I took the back plate off the phone I noticed the LCD flex cable had disconnected from the motherboard. After reconnecting it and checking to make sure all other cable connections were secure, I reassembled the phone. Still won't turn on, even when it's plugged in. I tried a hard master reset as well, nothing happened. The battery looks to be fine, as well as all components of the phone. Can somebody please point me in the right direction?

Posted via the Android Central App


Kyndal Brown

New member
Dec 13, 2014
2
0
0
Visit site

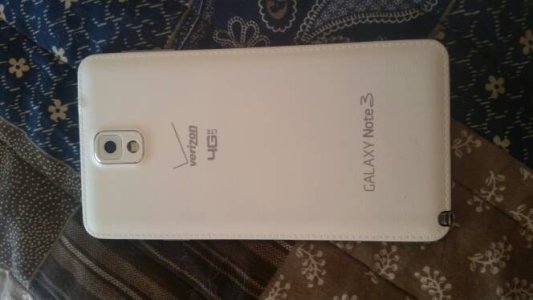

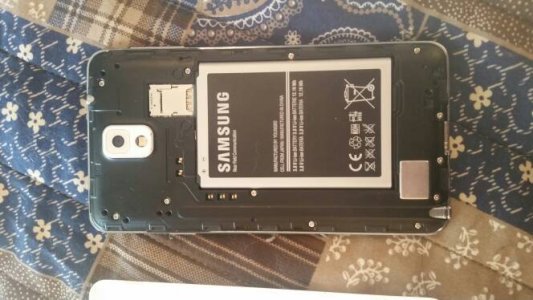

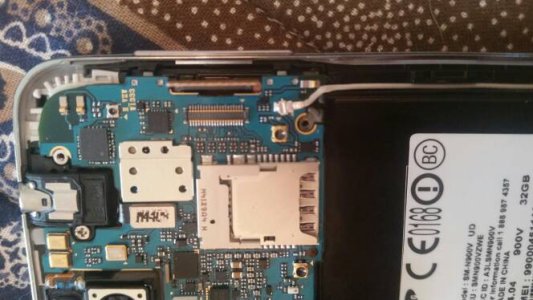

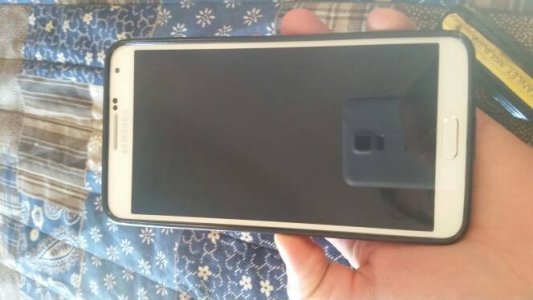

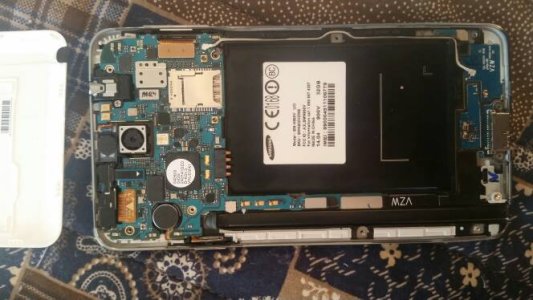

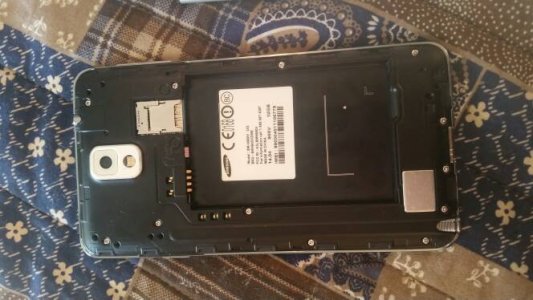

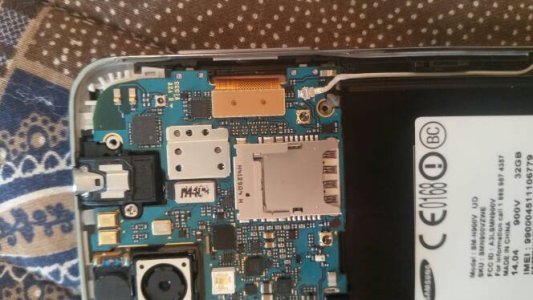

Ok, here are pictures of the phone in the stages of dissassembly. The LCD flex cable was disconnected as pictured below when I first took off the back plate. I reconnected it and checked all others and reassembled the phone.

Posted via the Android Central App


Attachments

  • 20141213_122111.jpg
    28.9 KB · Views: 21
  • 20141213_122150.jpg
    25 KB · Views: 21
  • 20141213_122205.jpg
    41.6 KB · Views: 21
  • 20141213_122217.jpg
    39.5 KB · Views: 21
  • 20141213_122555.jpg
    41.7 KB · Views: 21
  • 20141213_122646.jpg
    41.1 KB · Views: 21
  • 20141213_122608.jpg
    42.9 KB · Views: 25
