8 pin USB Micro plug?

spthomas

Well-known member
Mar 15, 2011
97
0
6
Visit site
I have two cameras and several charging cables that use what sort of LOOKS like a Micro USB B plug. On closer examination, the plug is shaped similarly to the USB Micro B, but it's smaller. On even closer examination, this smaller plug has 8 pins in it instead of the 5 that the Micro USB B has. Any idea what these are? I don't seem to find any reference to it anywhere. I did find a reference to the USB Micro A plug, but the specs say it's the same size as the USB Micro B and has 5 pins. So I don't think this is a Micro USB A, since this one is definitely smaller and has 8 pins.

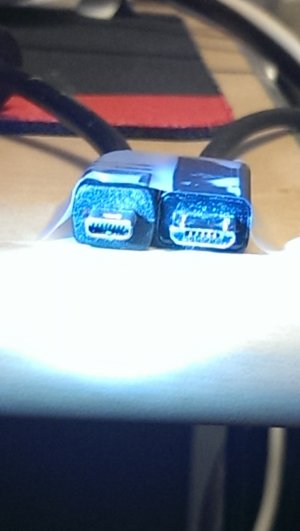

I've uploaded a picture. On the right is the standard USB Micro B plug that is used by almost all phones and tablets. On the left is this smaller plug that seems to be used mostly for cameras.

Steve


Attachments

  • IMAG0305[1].jpg
    143.8 KB · Views: 13

spthomas

Well-known member
Mar 15, 2011
97
0
6
Visit site
Good thought. But I looked at one, and the Micro HDMI is just a bit wider, and it has 16 pins, two rows in the connector.

The only device I have that uses this is an Olympus camera. But I had another brand of camera that used one too.


spthomas

Well-known member
Mar 15, 2011
97
0
6
Visit site
The one that says it's a "USB 1.1 Micro"? It does sort of look like that when I blow it up, except it has a few pins missing. But I have cables with all 8 pins, and at least one that only has 5 like this, so this may be it.

thanks


zedorda

Well-known member
Mar 16, 2011
2,594
179
0
Visit site
It is a proprietary plug meaning it can have as many or as little as the company using it wants. The real name of the plug is UC-E6 proprietary (non-USB) plug. It is considered non-USB bc it is not Universal it is Proprietary.
