Galaxy S4: charging paused. battery temperature too low

[jangeez]

My galaxy s4 (19500) sometimes not charging and give this message: charging puased. Battery temperature too low. I replacment charger and usb port, but The issue not resolved. Can anyone has any ideas?

Posted via Android Central App



[FutureKix]

Re: Galaxy S4: charging puased. battery temperature too low

Too low? Wow, either there is a problem with the battery or you live in Antarctica. Not to criticize, but you're sure it said too low, not too high? I may not be a battery expert, but I have never seen a situation where a rechargeable battery was too cold unless it was being tampered with.

If you didn't do anything to screw with the battery, and you keep getting that message, then you'll have to get a new battery. I highly doubt it's a software glitch, and replacement batteries aren't very expensive, so just make sure you're new one is a Samsung brand product... Batteries are not something you want from a generic manufacturer.

Also, you might try clearing your system cashe. I don't see how it would affect your battery but it certainly wouldn't hurt to try it. It's not difficult, but I'm not to clear on the exact buttons you have to hold, so just Google "Galaxy S4 clear system cashe".



[kach474]

Re: Galaxy S4: charging puased. battery temperature too low

Hello. I have been building a couple gs4's I ran into this same issue with one. I ended up swapping out the USB charging board and seemed to be the issue. I put the board out of the phone that gave that message in a phone I know worked and got the same message. I will know for sure when I get the new board in and confirm this. I'll let you know. Could also be the battery. Start there.

Posted via Android Central App



[jangeez]

Re: Galaxy S4: charging puased. battery temperature too low

Thank you FutureKix,
I tried some ways, as replacement usb charger, charger self, clean catch and data, factory rest. But the issue remain especially when temprature of battery fail to 4 C or lower. This lower temprature happen, when the device not use for about hour. This time I will replacement battery, my be useful.

Posted via Android Central App



[jangeez]

Re: Galaxy S4: charging puased. battery temperature too low

Do you think battery is the issue? I don't think so, but I have to change it, because I tried all ways, just didnt try this option. Thankyou

Posted via Android Central App



[garublador]

Re: Galaxy S4: charging puased. battery temperature too low

Is there any chance your battery is actually getting down to 4 C? Are you keeping your phone somewhere that cold? If so then my guess is that all phones will give that message. Li-ion batteries shouldn't be charged when they're below around 5C or above 45C or so.

Sent from my SCH-I545 using AC Forums mobile app



[jangeez]

Thank you qarublador
My device not charging when I don't use it. I forced use it until charging complete.
I keep it in room that temprature is above 23 C.

Posted via Android Central App



[kach474]

Re: Galaxy S4: charging puased. battery temperature too low

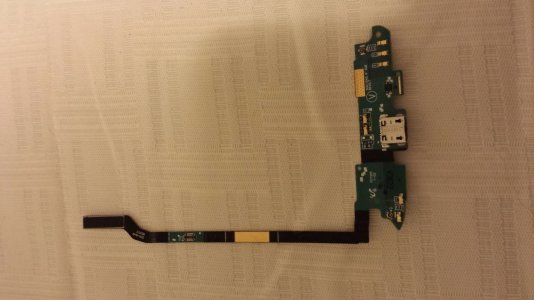

Had a GS4 same error when tying to charge. I replaced this part. Which fixed it. Just thought I would share.



[jangeez]

Thankyou Cach 474, I changed it, before, but the issue remains. Just the issue late and less up come.

Posted via Android Central App



[samwel bonifasi]

I having the same problem



[Teej1000]

I am having the exact same problem and I live in the tropics where it is usually in the 80's-90's everyday. I have bought an extra battery and it does the same exact thing. I can only charge the batteries on an external charger now.
No one knows what to do yet?



[jangeez]

I'm waiting for best idea and solution.
Maybe someone can help.

Posted via Android Central App



[garublador]

I'm waiting for best idea and solution.
Maybe someone can help.

Posted via Android Central App

It's already been given. It appears to be to change the "USB charging board." It sounds like there must be some failure with the temperature sensing circuit on that board.



[Chantel Haugen]

Re: Galaxy S4: charging puased. battery temperature too low

How much did this piece cost:? mine is doing the same thing



[garublador]

Re: Galaxy S4: charging puased. battery temperature too low

I'd look into getting it replaced under warranty.



[xtzee]

Re: Galaxy S4: charging puased. battery temperature too low

I've changed my board but still the same issue. It would have to be a sensor issue on the mainboard in this case .



[samh10099]

Hi I had this problem with my phone but now I have figured out how to fix it. The thermistor ( which is located in the charging port) is faulty and reads a temperature to high or low hence then you can't charge the battery . There are two possible fixes to this problem

1. Replace charging part (costs around ?6.00 from ebay)

2. Buy a samsung extra battery kit so you can charge your battery and not get that annoying message.

Hope it helped



[warmhp]

Hi Samh 10099,
I could not find the thermistor on ebay. Could you please provide the url link to the eBay page?
Thanks.



[Regen Ayalew]

Samsung Galaxy S4 low battery temperature



[wrektime]

My galaxy s4 (19500) sometimes not charging and give this message: charging puased. Battery temperature too low. I replacment charger and usb port, but The issue not resolved. Can anyone has any ideas?

Posted via Android Central App
